Home | Key Products

Key Products

High Reliability PCB Board At Sunking,Monthly capacity of 80,000 square meters

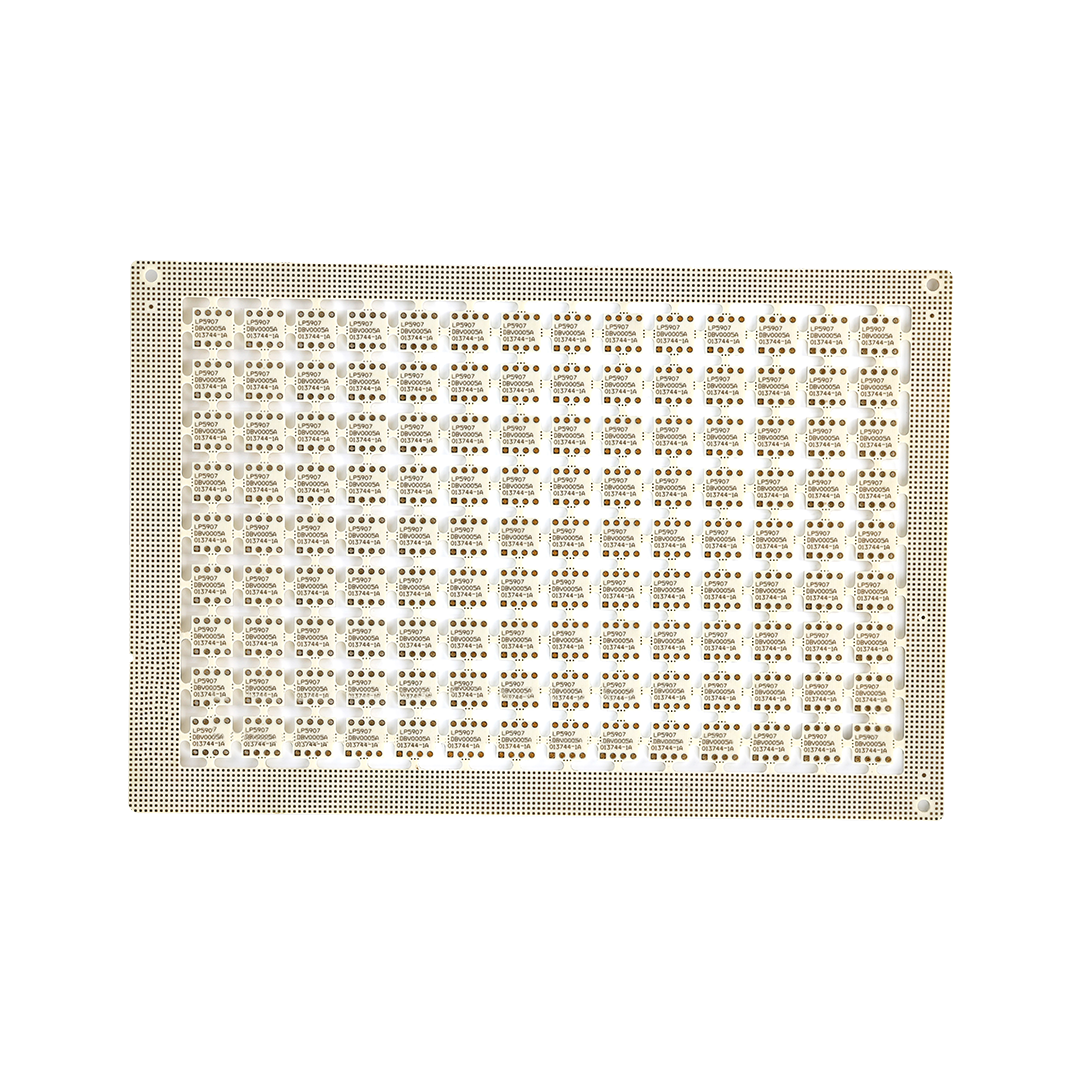

  • sk164A182739

    sk164A182739

    Type: 32-Pieces-Simple Panel

    Format: 2L Copper substrate

    Material: VT4B3

    Surface: Chemical gold 2U

    Min Track / Space: 100µm

    Min. Drill Dia.: 0.1mm

    Soldermask: Top + Bottom

    Marking Print: White

    E-Test: Yes

    Sideplating: Yes

    Burried Vias: Yes

    Blind Vias: Yes


    More Consulting
  • 994A194356

    994A194356

    Type: 32-Pieces-Simple Panel

    Format: 2L Copper substrate

    Material: VT4B3

    Surface: Chemical gold 2U

    Min Track / Space: 100µm

    Min. Drill Dia.: 0.1mm

    Soldermask: Top + Bottom

    Marking Print: White

    E-Test: Yes

    Sideplating: Yes

    Burried Vias: Yes

    Blind Vias: Yes


    More Consulting

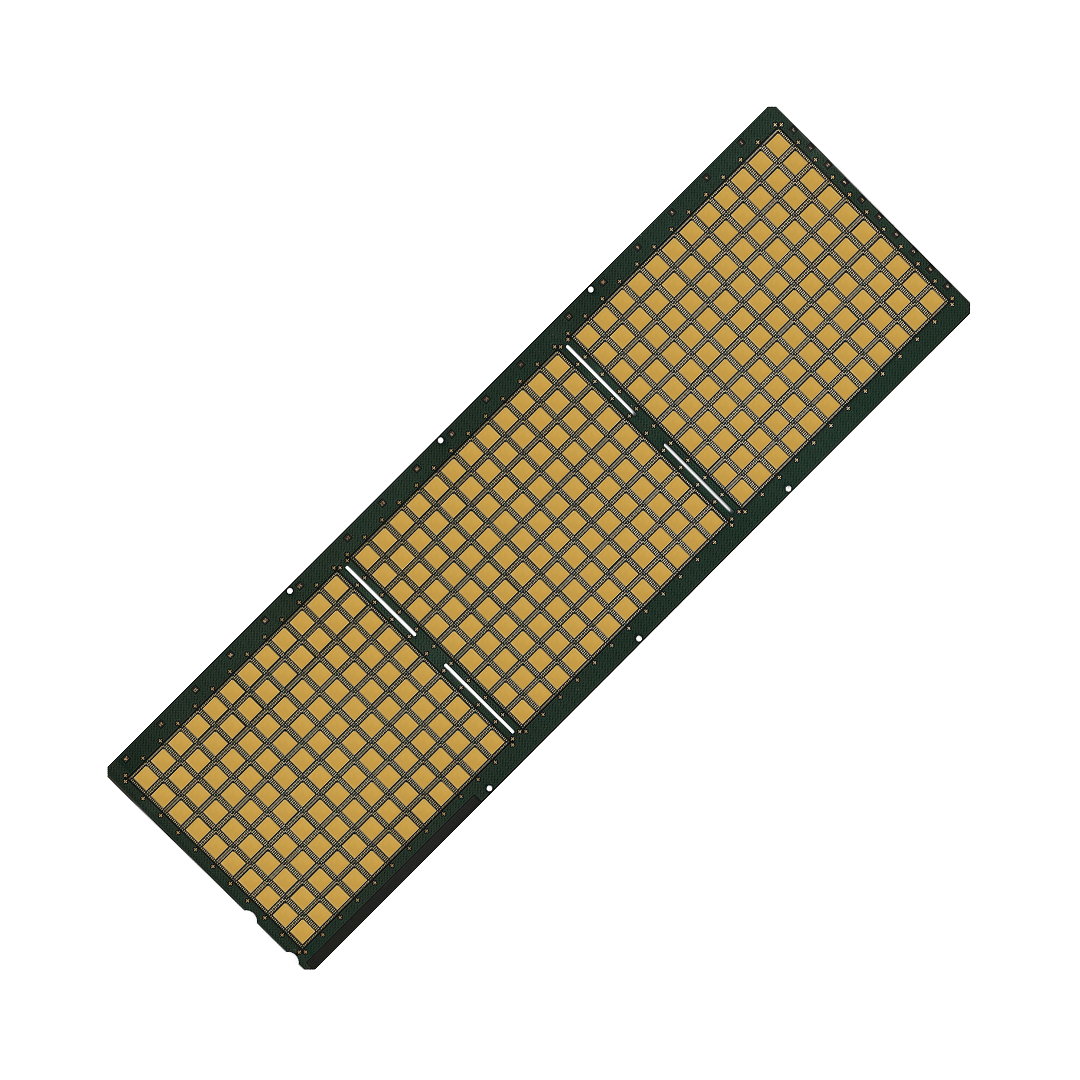

  • PCB Manufacturing

    PCB Manufacturing

    Panel: 8019.01_0394271-01

    Type: 15-Pieces-Simple Panel

    Format: 8 - Layer - Multilayer

    Surface:Chemical gold 2U

    Mech. treatment:Milled with perf.bridges

    Panel-Size: 172,80mm x 99,50mm = 1,72dm²

    Material: FR4 Tg 150 S1000H 1.0mm OL:35µm / IL:35µm Cu

    Min Track / Space:100µm

    Min. Drill Dia:0.1mm

    Soldermask: Top + Bottom, green

    Marking Print: without

    E-Test: Yes

    Sideplating: Yes

    Burried Vias: Yes

    Blind Vias: Yes

    More Consulting
  • PCB Manufacturing

    PCB Manufacturing

    Panel: 8019.01_0394271-01

    Type: 15-Pieces-Simple Panel

    Format: 8 - Layer - Multilayer

    Surface:Chemical gold 2U

    Mech. treatment:Milled with perf.bridges

    Panel-Size: 172,80mm x 99,50mm = 1,72dm²

    Material: FR4 Tg 150 S1000H 1.0mm OL:35µm / IL:35µm Cu

    Min Track / Space:100µm

    Min. Drill Dia:0.1mm

    Soldermask: Top + Bottom, green

    Marking Print: without

    E-Test: Yes

    Sideplating: Yes

    Burried Vias: Yes

    Blind Vias: Yes

    More Consulting

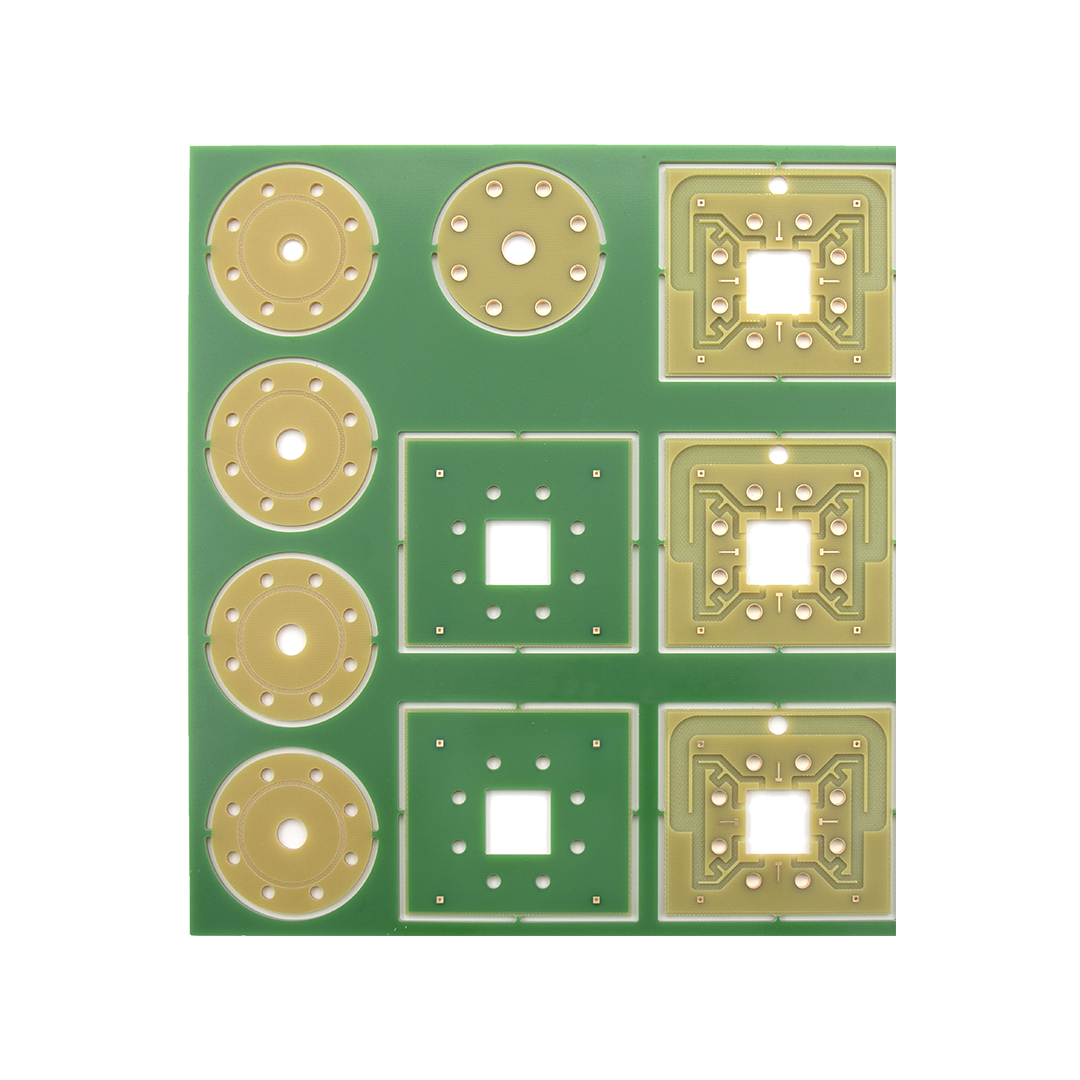

  • Depth milling PCB

    Depth milling PCB

    Type: 4 different kinds board in one simple Panel

    Format: 2 Layer

    Surface:Chemical gold 2U

    Mech. treatment:Milled with perf.bridges

    Material: FR4 Tg 150 S1000H 1.0mm OL:35µm / IL:35µm Cu

    Min Track / Space:100µm

    Min. Drill Dia:0.1mm

    Soldermask: Top + Bottom, green

    Marking Print: without

    E-Test: Yes

    Depth milling: Yes


    More Consulting

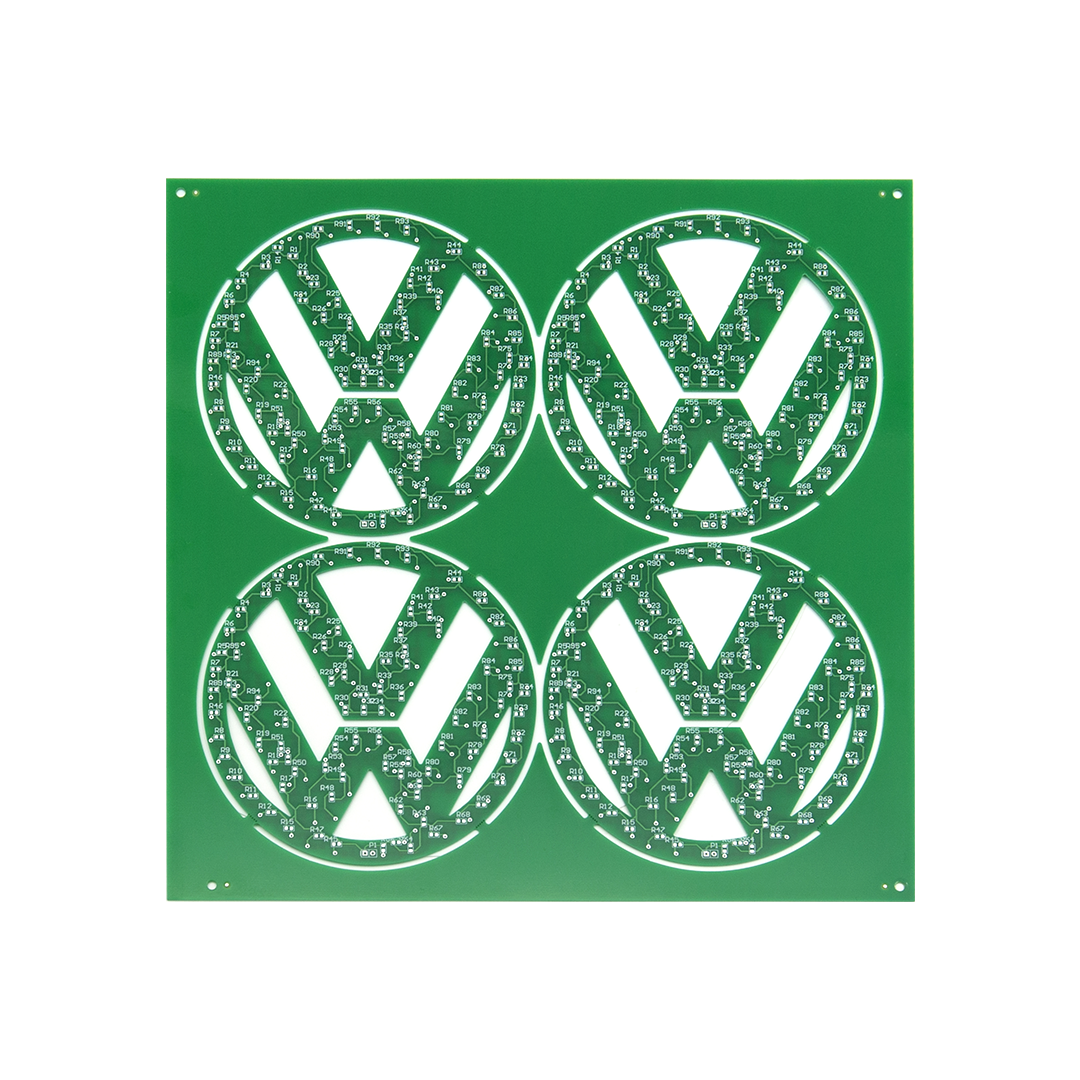

  • Volkswagen LED board

    Volkswagen LED board

    Type: 4-Pieces-Simple Panel

    Format: 2 - Layer - Multilayer

    Surface: LF-HASL

    Mech. treatment:Milled with perf.bridges

    Material: FR4 TG 150 S1000H 1.0mm OL:35µm / IL:35µm Cu

    Min Track / Space:100µm

    Min. Drill Dia:0.1mm

    Soldermask: Top + Bottom, green

    Marking Print: White

    E-Test: Yes


    More Consulting
